Power Mirror Control Unit Connector End View (View 301)
Power Mirror Control Unit Connector End View (View 301)
GRY
Driver's Door
On Driver's Door Switch Sub-harness

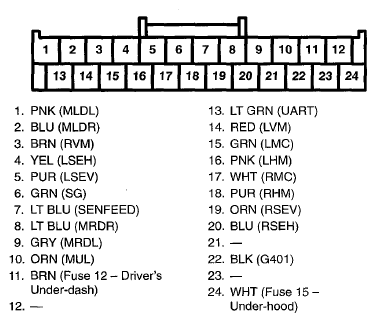

Fig 1: Power Mirror Control Unit Connector Terminal (View 301)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
