Electrical Compass Unit Connector End View (Without Navigation) (View 210)
Electrical Compass Unit Connector End View (Without Navigation) (View 210)
BLU
Middle of Rear Shelf
On Right Side Wire Harness

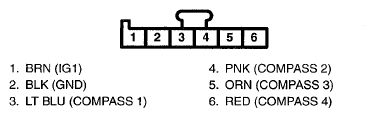

Fig 1: Electrical Compass Unit Connector Terminal (Without Navigation) (View 210)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
