Repair and Diagnosis (Single Page)
>>
Electrical
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector End Views
>>
Audio Remote Switch/HFL Voice Control Switch Connector End View (Without Navigation) (View 247)
Audio Remote Switch/HFL Voice Control Switch Connector End View (Without Navigation) (View 247)
WHT
Steering Wheel
On Cable Reel Sub-harness

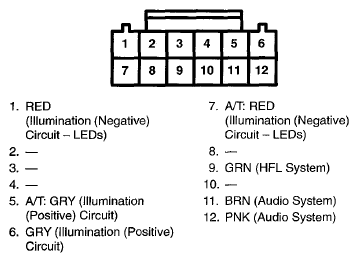

Fig 1: Audio Remote Switch/HFL Voice Control Switch Connector Terminal (Without Navigation) (View 247)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
