Ignition Key Switch/Key Light Connector End View (Without Keyless Access) (View 215)
Ignition Key Switch/Key Light Connector End View (Without Keyless Access) (View 215)
GRN
In Steering Column Cover
On Dashboard Wire Harness

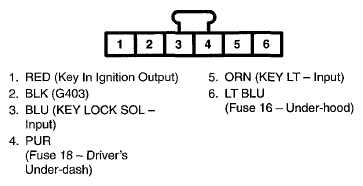

Fig 1: Ignition Key Switch/Key Light Connector Terminal (Without Keyless Access) (View 215)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
