IG1B Relay, Remote Starting Control Unit In-Line Fuse 2, and IG Fuse Connector End View (Remote Starting System (Acura Accessory: Keyless Access)) (View 364)

N/A
Under Left Side of Dash
On Remote Starting Wire Harness

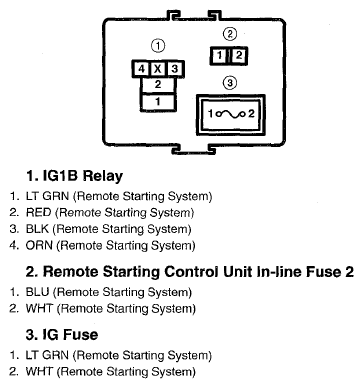

Fig 1: IG1B Relay, Remote Starting Control Unit In-Line Fuse 2, And IG Fuse Connector Terminal (Remote Starting System (Acura Accessory: Keyless Access)) (View 364)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
