Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Circuit Diagrams
>>
Multiplex Integrated Control System
>>
GA-NET Audio (XM Radio without Navigation)
GA-NET Audio (XM Radio without Navigation)

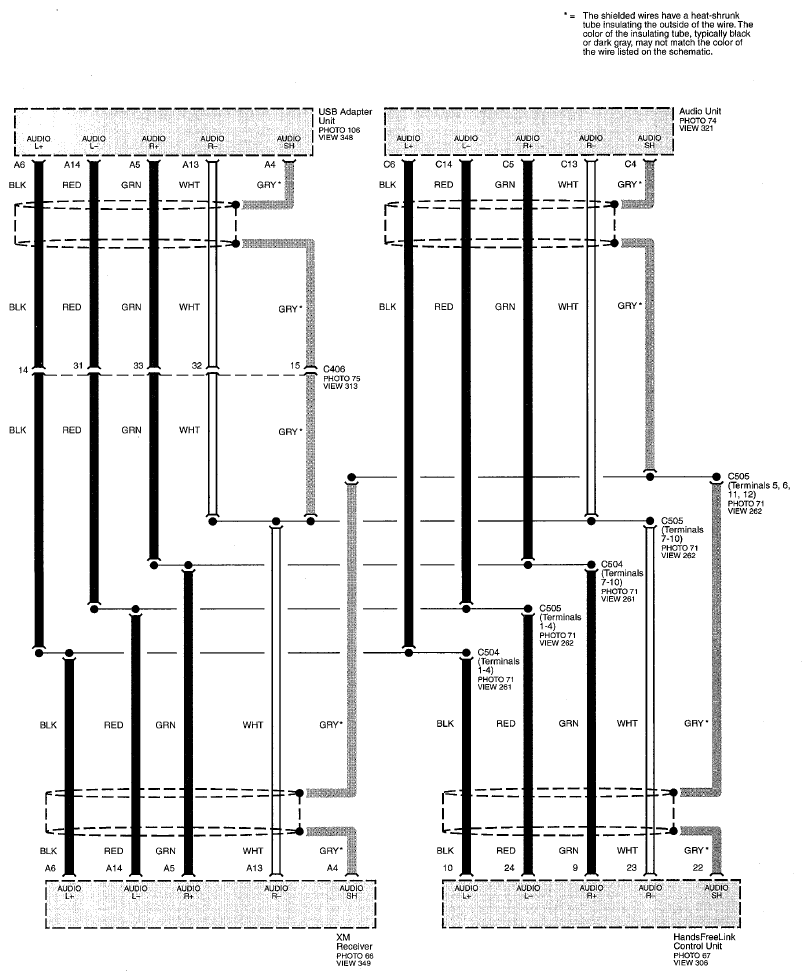

Fig 1: Multiplex Integrated Control System Circuit Diagram - GA-NET Audio (XM Radio Without Navigation) (Page 50-17)
