XM Receiver Connector for Inputs and Outputs (Without AcuraLink): Notes

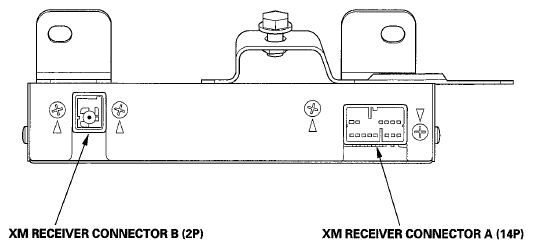

Fig 1: Identifying XM Receiver Connectors (Without AcuraLink)

G05989479

Courtesy of AMERICAN HONDA MOTOR CO., INC.
