Shift Lever Boot and A/T Gear Position Indicator Panel Replacement

Remove the center console panel (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Remove the shift lever knob (see )SHIFT LEVER KNOB REPLACEMENT .
Remove the A/T gear position indicator panel light bulb socket from the indicator panel, and remove the indicator panel/shift lever boot assembly.

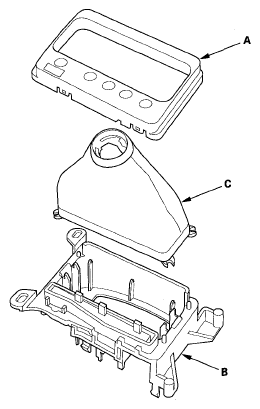

Disassemble the indicator panel upper (A), lower (B), and boot (C).

Fig 1: Locating Indicator Panel Upper, Lower And Boot
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the shift lever boot or A/T gear position indicator panel.

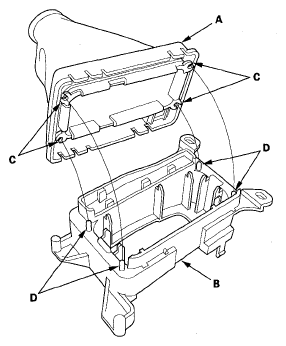

Install the shift lever boot (A) on the A/T gear position indicator lower panel (B) with aligning the corner slots (C) with the tabs (D) on the lower panel.

Fig 2: Locating Shift Lever Boot And A/T Gear Position Indicator Lower Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the upper panel on the lower panel.
Install the indicator panel/boot assembly on the shift lever bracket.
Install the A/T gear position indicator panel light bulb socket in the indicator panel.
Install the shift lever knob (see )SHIFT LEVER KNOB REPLACEMENT .
Install the center console panel (see CENTER CONSOLE REMOVAL/INSTALLATION ).
