Exploded View

Replace the pump as an assembly if the parts indicated with an asterisk (*) are worn or damaged.

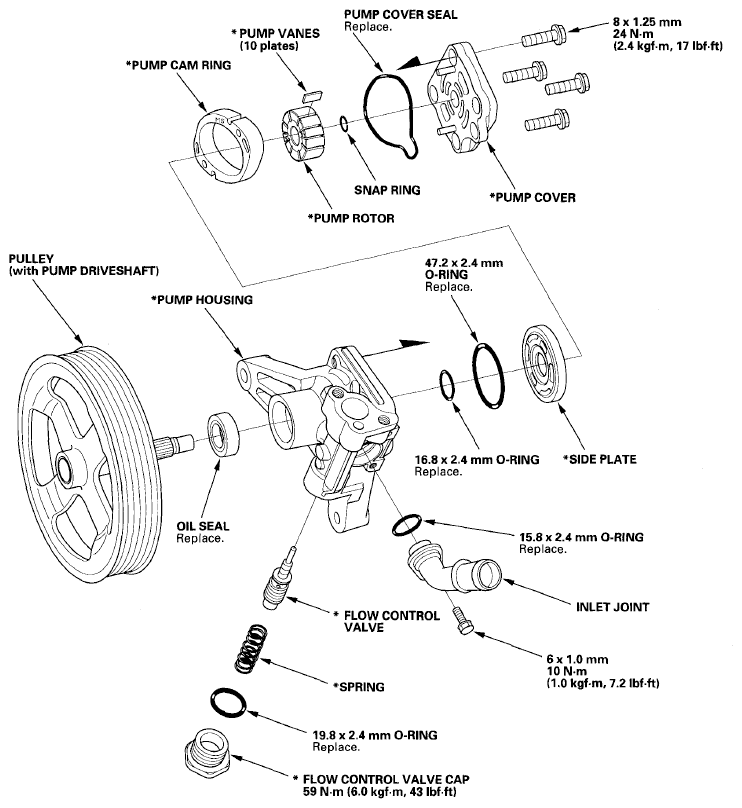

Fig 1: Exploded View Of Pump With Torque Specification With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
