Rear Interior Keyless Access LF Antenna Connector End View

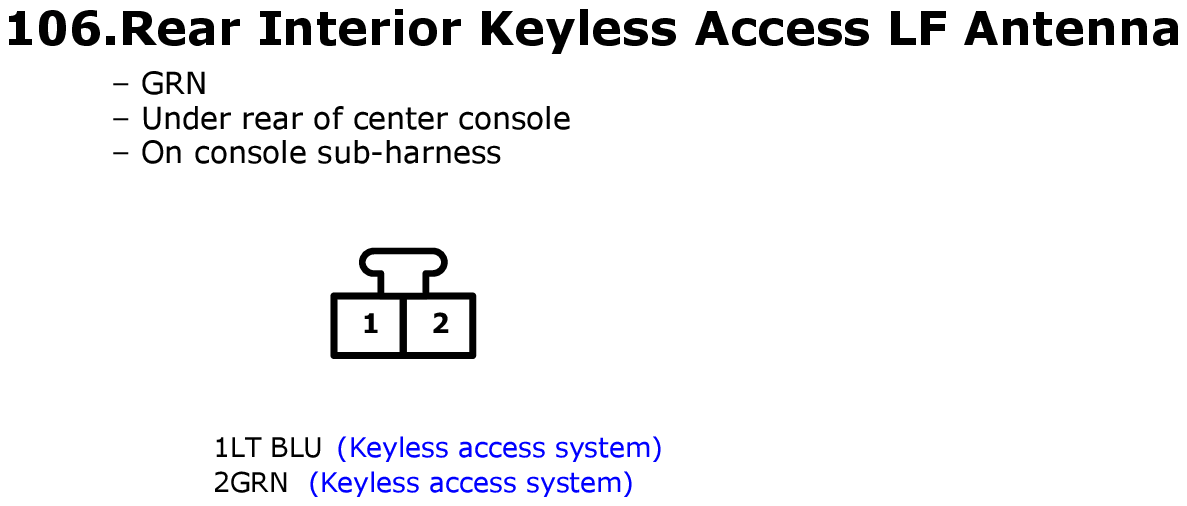

Fig 1: Rear Interior Keyless Access LF Antenna Connector End View

GHHW9962

Courtesy of AMERICAN HONDA MOTOR CO., INC.
