Left Side Impact Sensor (2nd) Connector End View

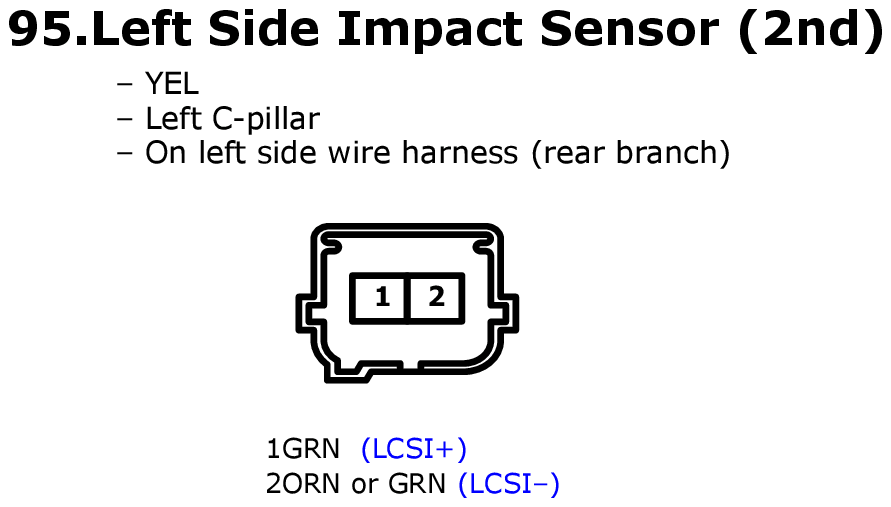

Fig 1: Left Side Impact Sensor (2nd) Connector End View

GHHW9951

Courtesy of AMERICAN HONDA MOTOR CO., INC.
