Front Passenger's Vanity Mirror Light Connector End View

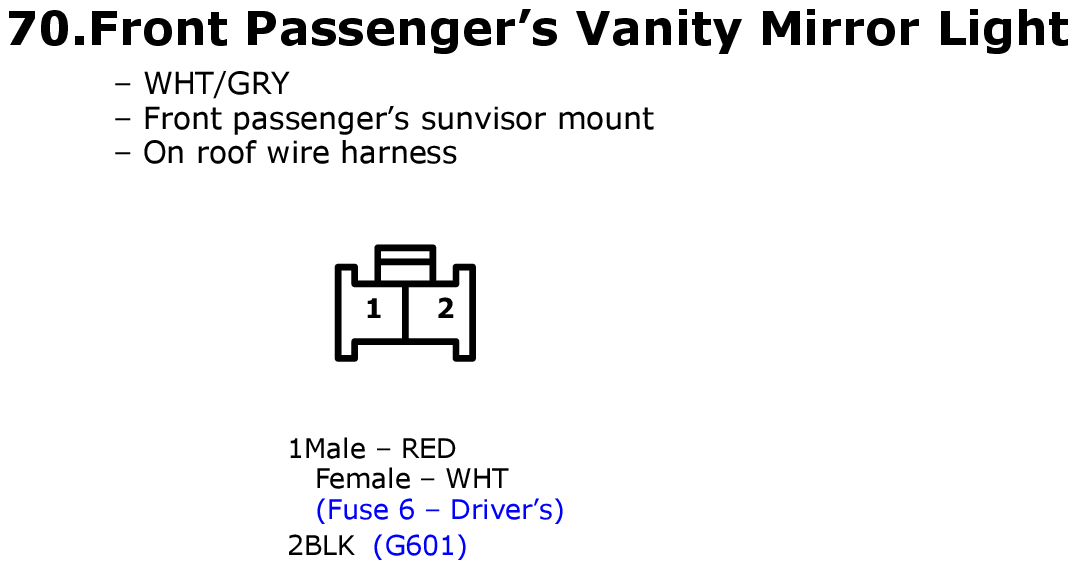

Fig 1: Front Passenger's Vanity Mirror Light Connector End View

GHHW9926

Courtesy of AMERICAN HONDA MOTOR CO., INC.
