Front A/F Sensor (B2, S1) Connector End View

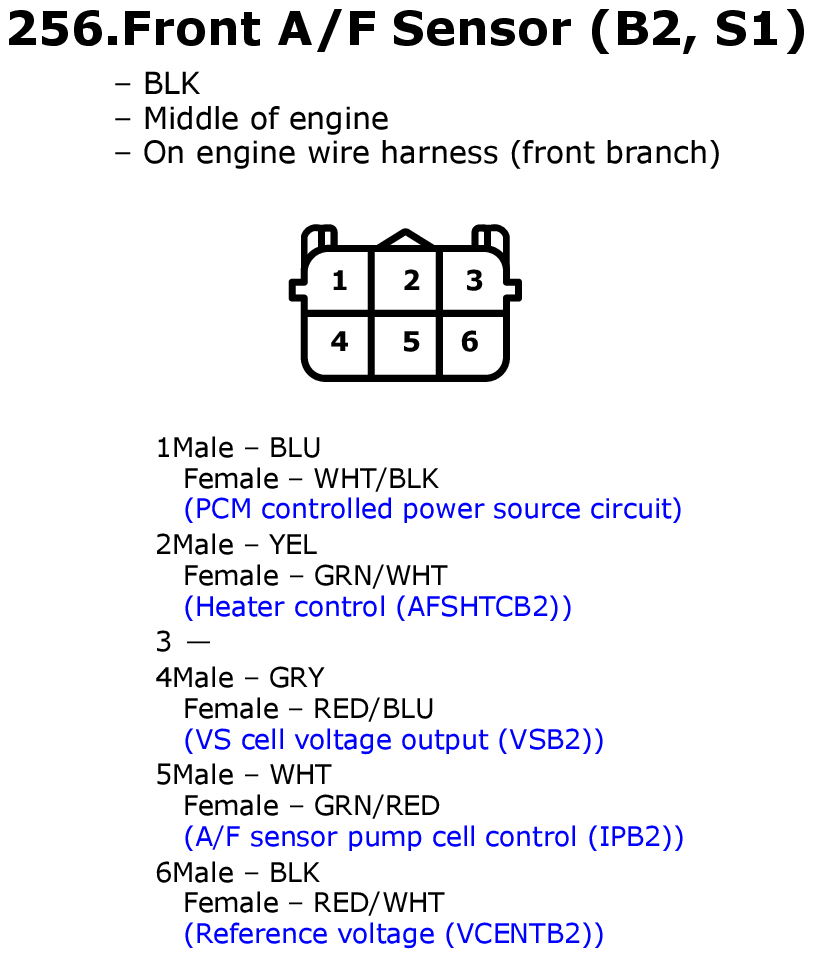

Fig 1: Front A/F Sensor (B2, S1) Connector End View

GHHW10112

Courtesy of AMERICAN HONDA MOTOR CO., INC.
