C852 (Junction Connector) Connector End View

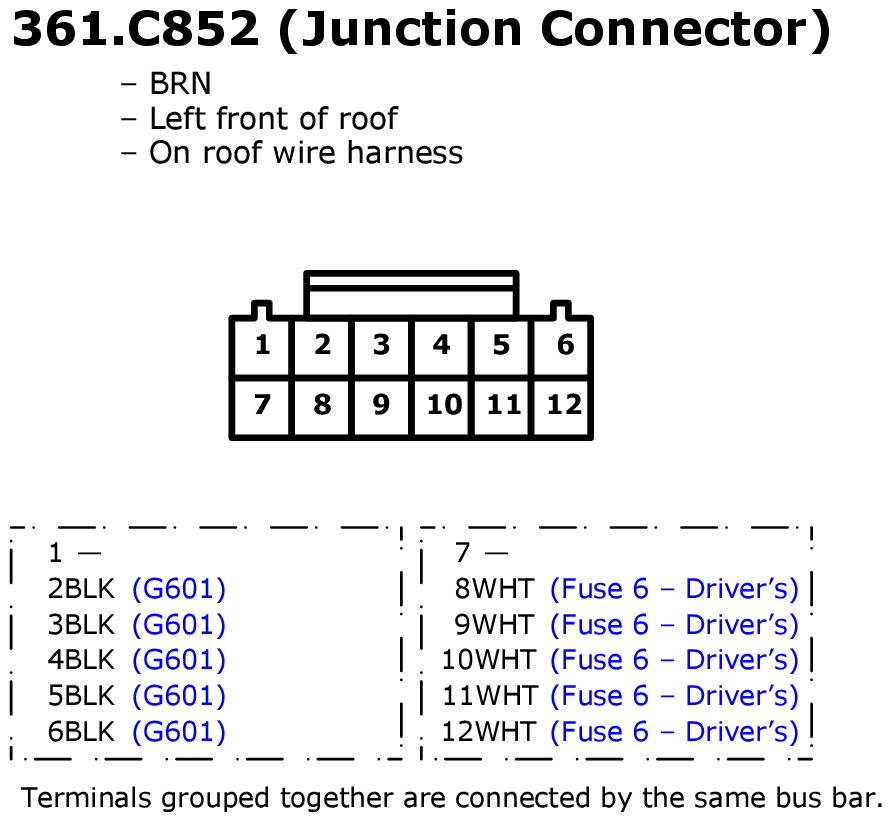

Fig 1: C852 (Junction Connector) Connector End View

GHHW10217

Courtesy of AMERICAN HONDA MOTOR CO., INC.
