C614 (Junction Connector) Connector End View
C614 (Junction Connector) Connector End View

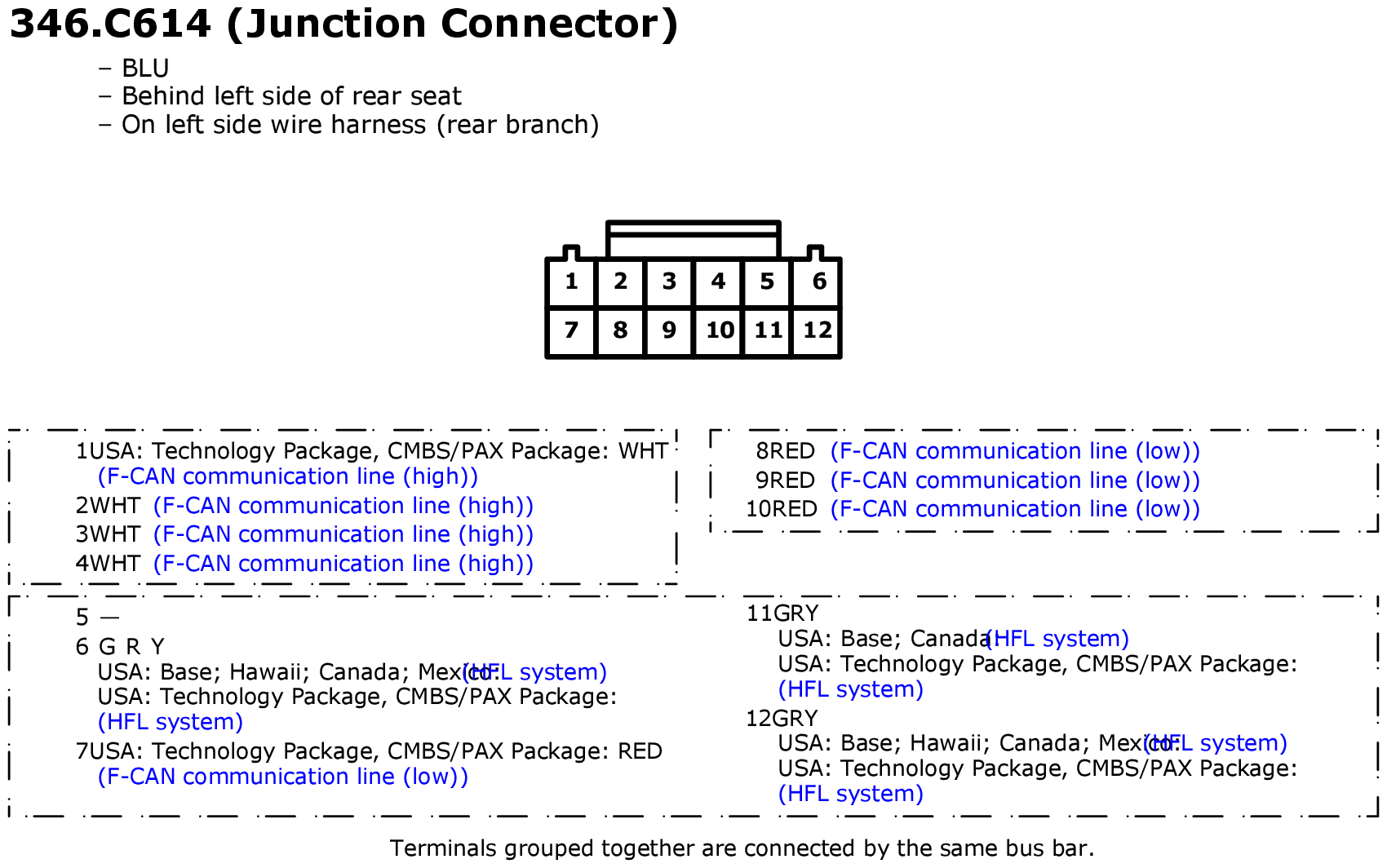

Fig 1: C614 (Junction Connector) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
