C612 (Junction Connector) Connector End View

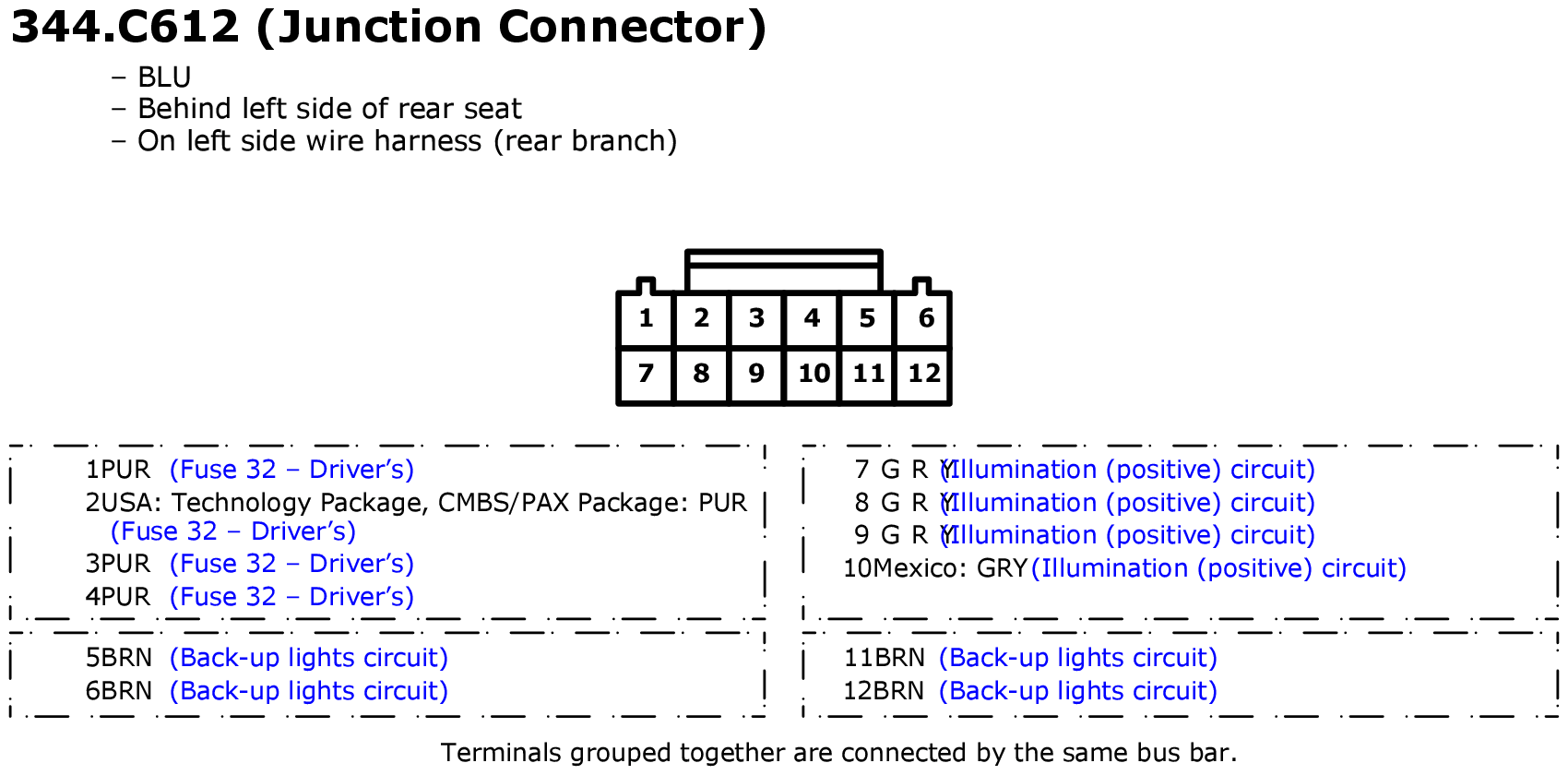

Fig 1: C612 (Junction Connector) Connector End View

GHHW10200

Courtesy of AMERICAN HONDA MOTOR CO., INC.
