C522 (Junction Connector) Connector End View

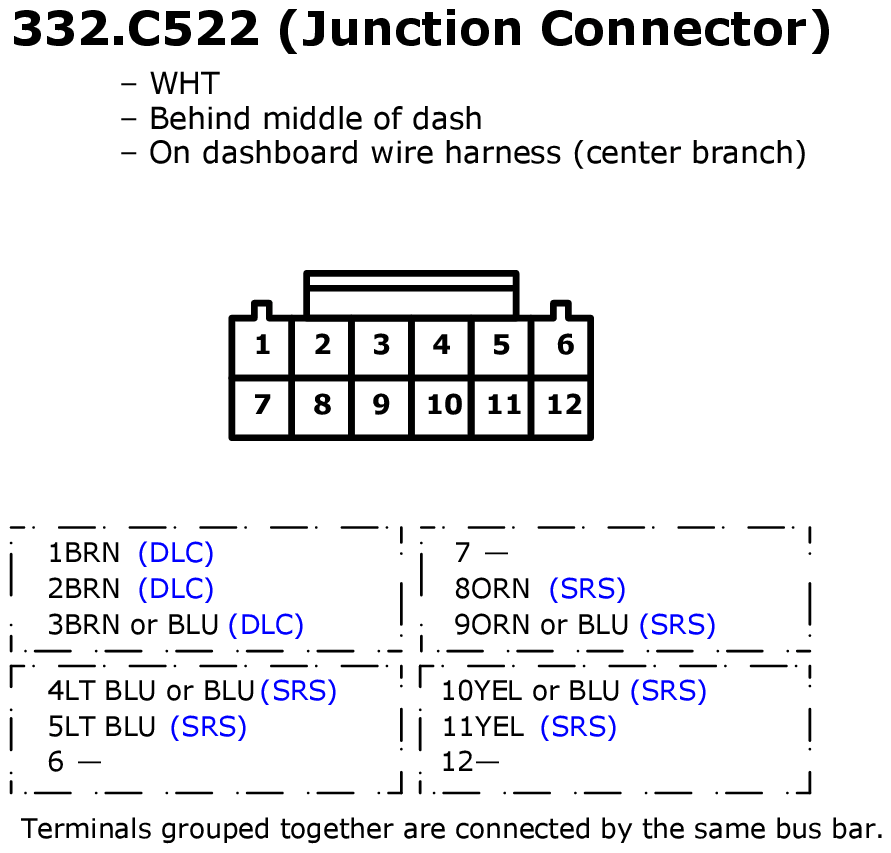

Fig 1: C522 (Junction Connector) Connector End View

GHHW10188

Courtesy of AMERICAN HONDA MOTOR CO., INC.
