C515 (Junction Connector) Connector End View

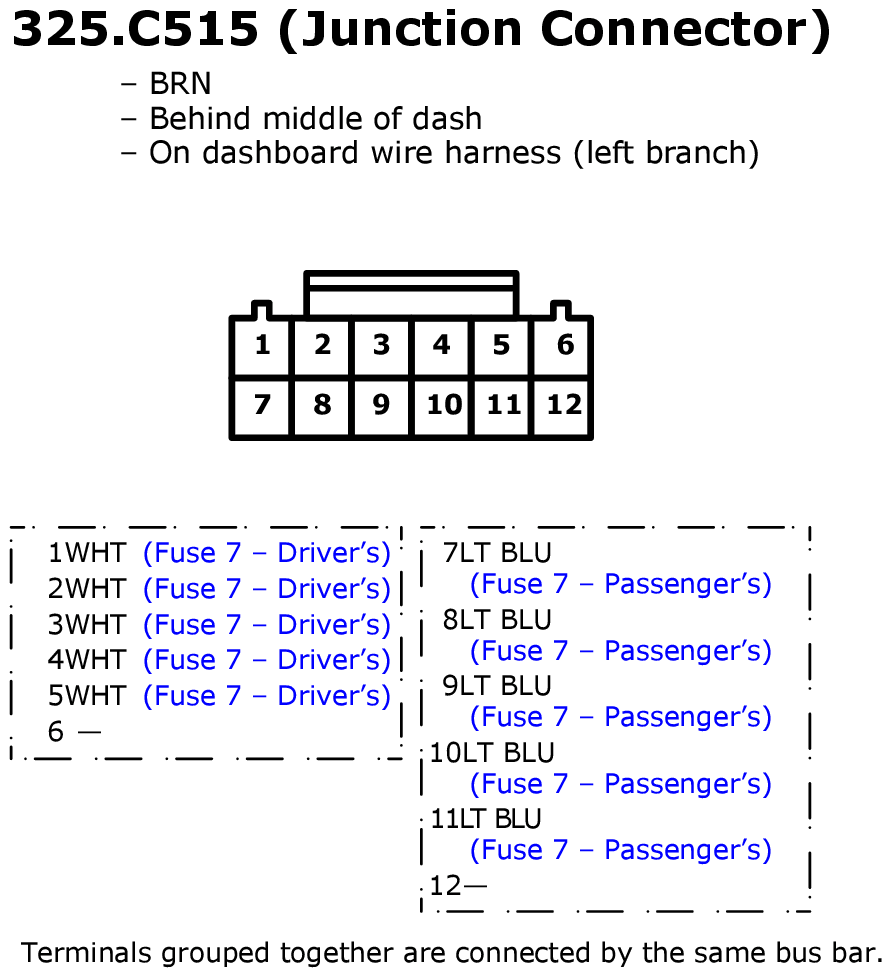

Fig 1: C515 (Junction Connector) Connector End View

GHHW10181

Courtesy of AMERICAN HONDA MOTOR CO., INC.
