C511 (Junction Connector) Connector End View

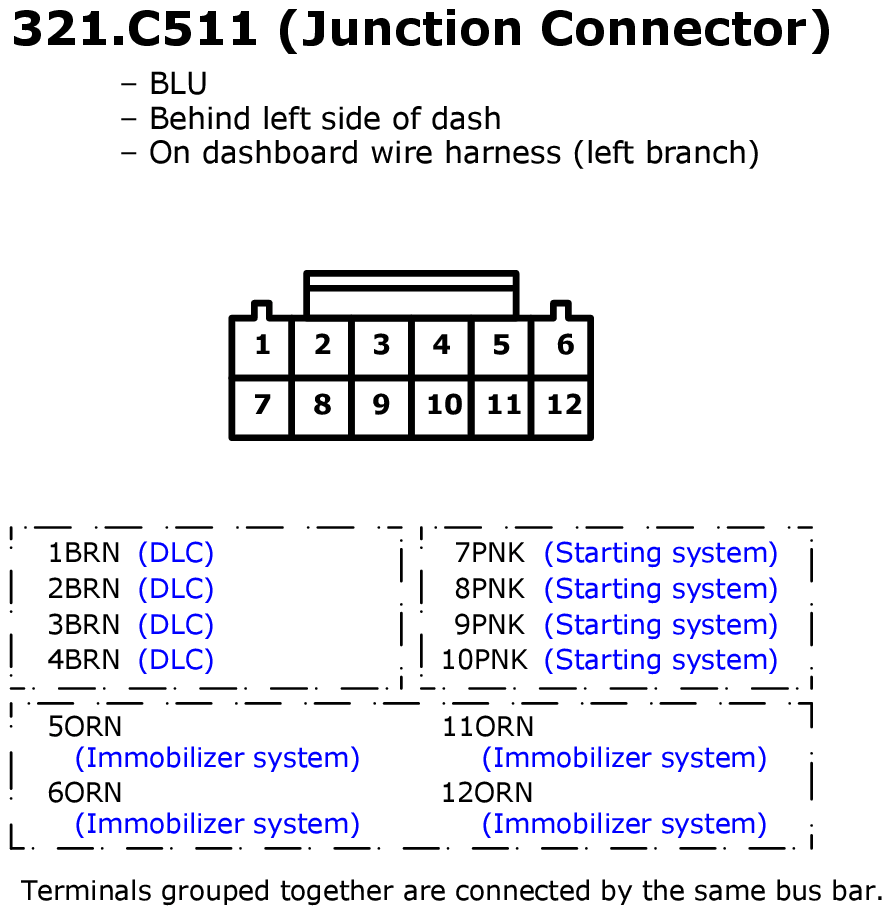

Fig 1: C511 (Junction Connector) Connector End View

GHHW10177

Courtesy of AMERICAN HONDA MOTOR CO., INC.
