C507 (Junction Connector) Connector End View

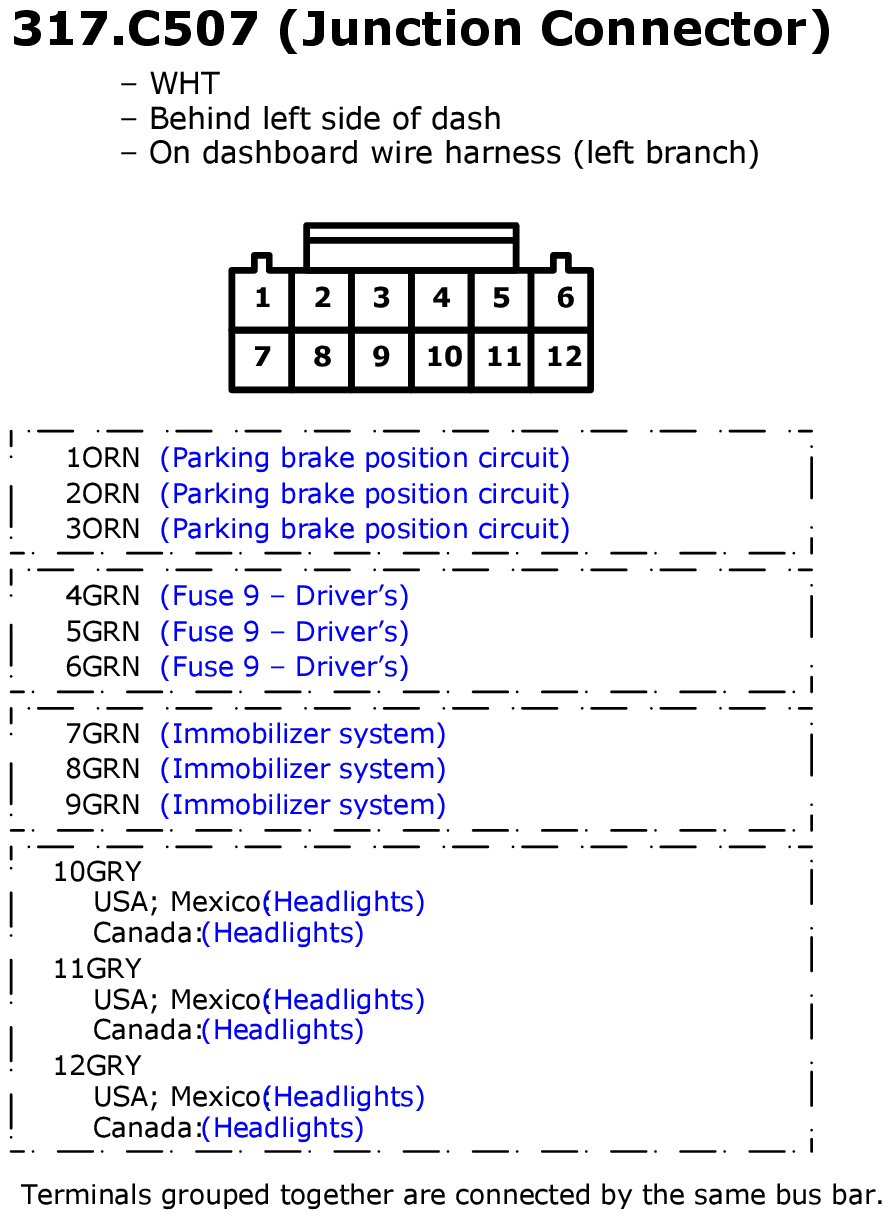

Fig 1: C507 (Junction Connector) Connector End View

GHHW10173

Courtesy of AMERICAN HONDA MOTOR CO., INC.
