APP Sensor (USA: Technology Package; Mexico) Connector End View
APP Sensor (USA: Technology Package; Mexico) Connector End View

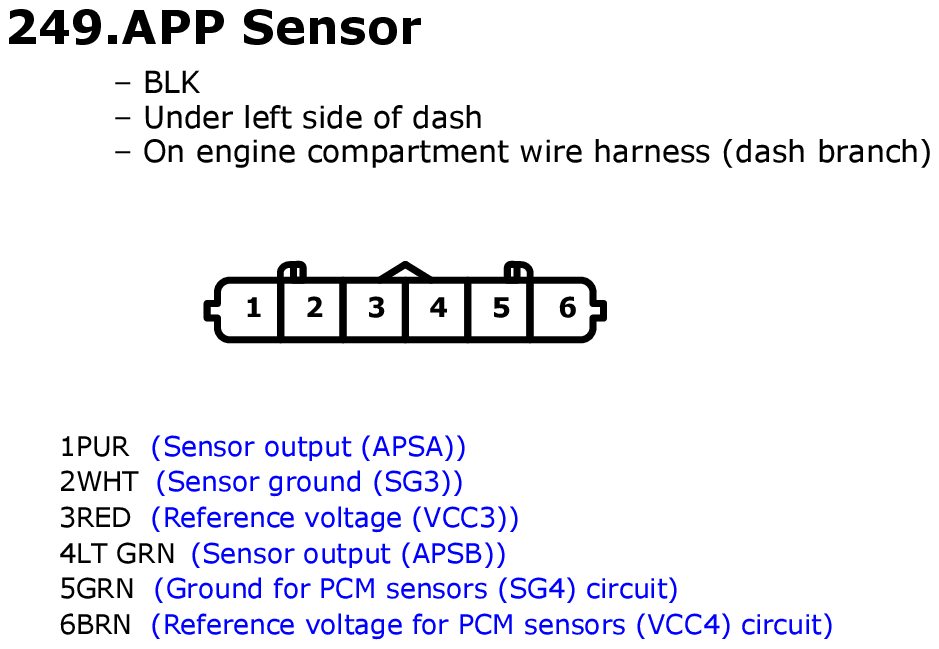

Fig 1: APP Sensor (USA: Technology Package; Mexico) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
