Engine Mount Replacement

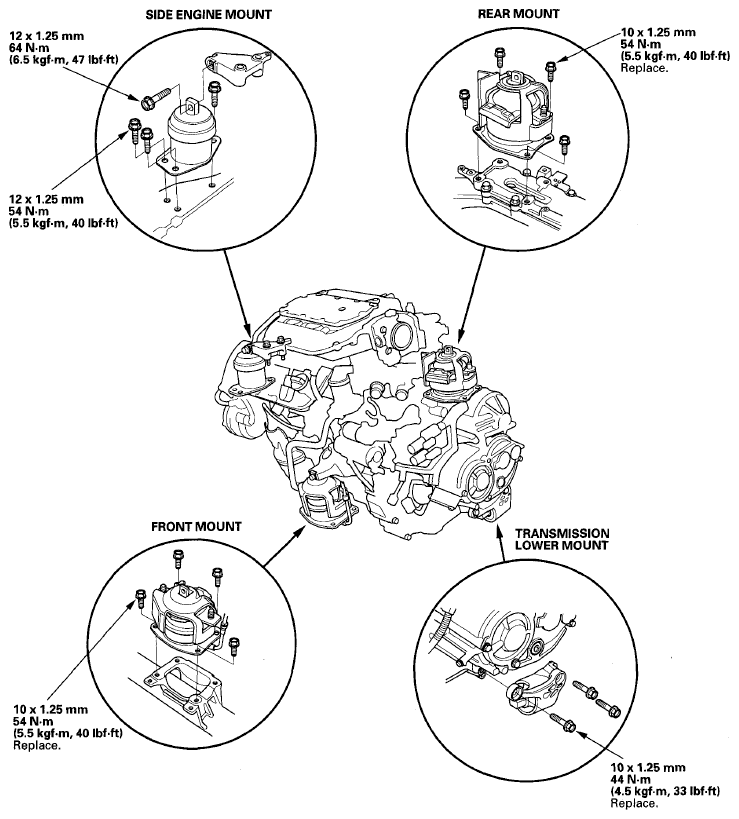

Fig 1: Engine Mount With Torque Specifications

G06163349

Courtesy of AMERICAN HONDA MOTOR CO., INC.
