Home >> Acura >> 2009 >> RL >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Fan Controls >> Circuit Diagram

Circuit Diagram

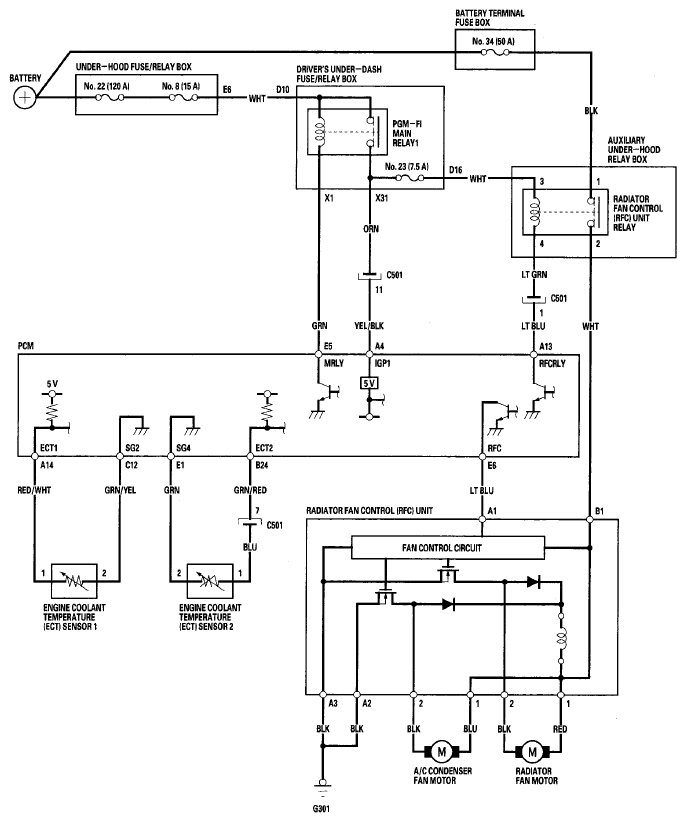

Fig 1: FAN Circuit Diagram

G06163664

Courtesy of AMERICAN HONDA MOTOR CO., INC.
