FTP Sensor Replacement

  1. Remove the trunk front trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
  2. Remove the access panel (A) from the floor.
    Fig 1: Identifying Access Panel
    G06164260Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the hose (A) and the FTP sensor 3P connector (B).

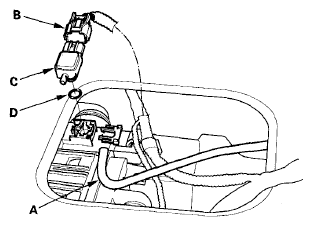

    Fig 2: Identifying Hose & FTP Sensor 3P Connector
    G06164261Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the FTP sensor (C).
  5. Install the parts in the reverse order of removal with a new O-ring (D).
