EVAP Canister Replacement

  1. Remove the propeller shaft (see PROPELLER SHAFT REMOVAL ).
  2. Remove the rear differential (see REAR DIFFERENTIAL REMOVAL ).
  3. Disconnect the connectors (A) and the hoses (B).

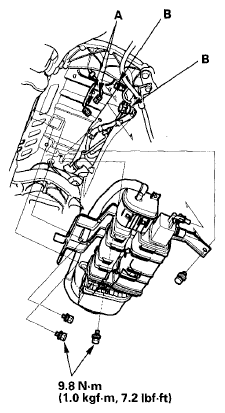

    Fig 1: Connectors & Hoses With Torque Specifications
    G06164258Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the EVAP canister (A).
    Fig 2: EVAP Canister With Torque Specifications
    G06164259Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the parts in the reverse order of removal.
