Component Location Index

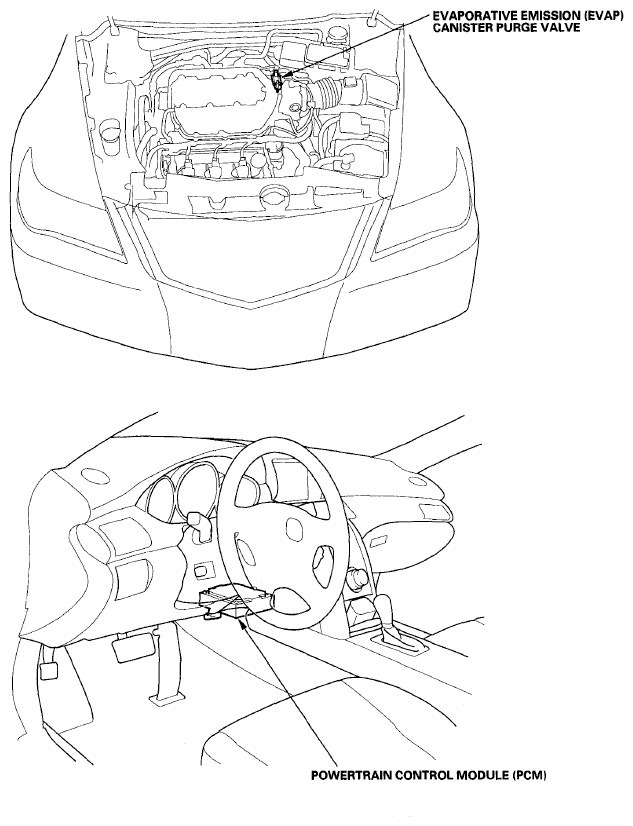

Fig 1: Identifying EVAP System Replacement Components (1 Of 2)
G06164219Courtesy of AMERICAN HONDA MOTOR CO., INC.

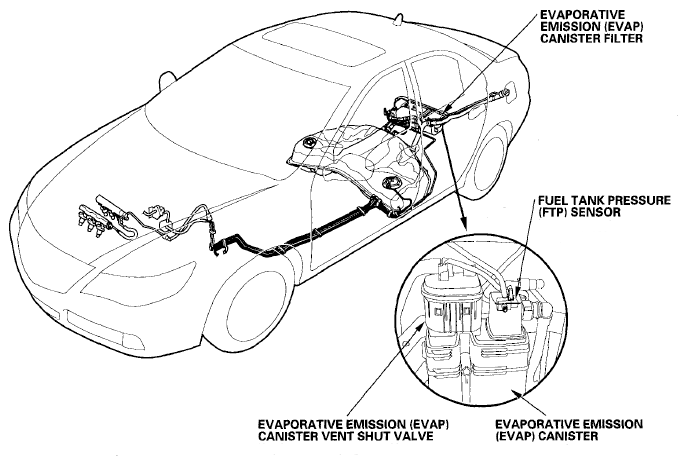

Fig 2: Identifying EVAP System Replacement Components (2 Of 2)
G06164220Courtesy of AMERICAN HONDA MOTOR CO., INC.
