Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
HVAC Control Motor Relay Connector End View
HVAC Control Motor Relay Connector End View

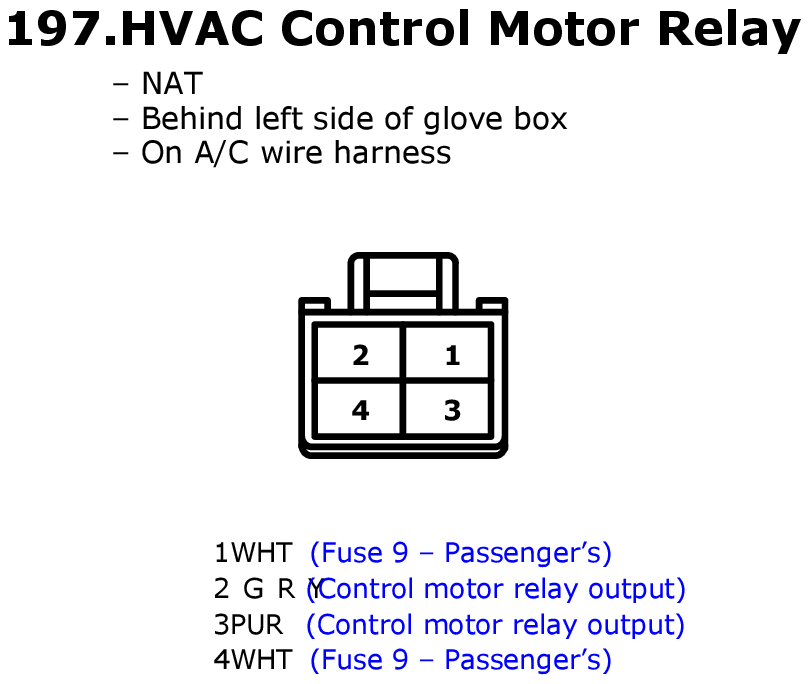

Fig 1: HVAC Control Motor Relay Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
