Collision Mitigation Brake System (CMBS)
>>
Component Location Index
Component Location Index

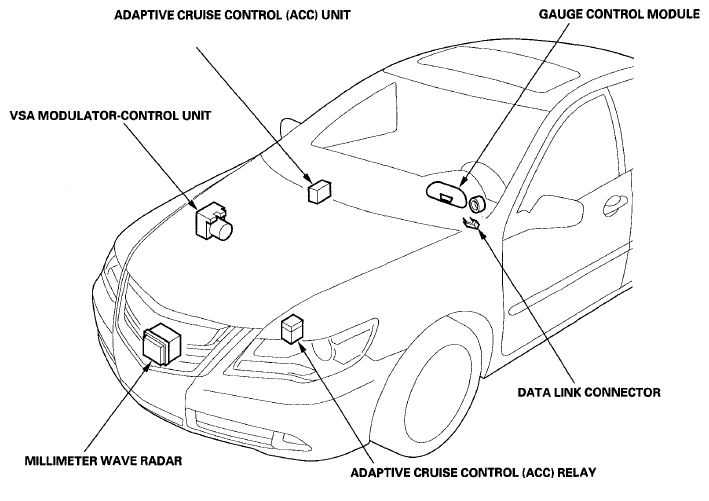

Fig 1: Identifying Collision Mitigation Brake System (CMBS) Replacement Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

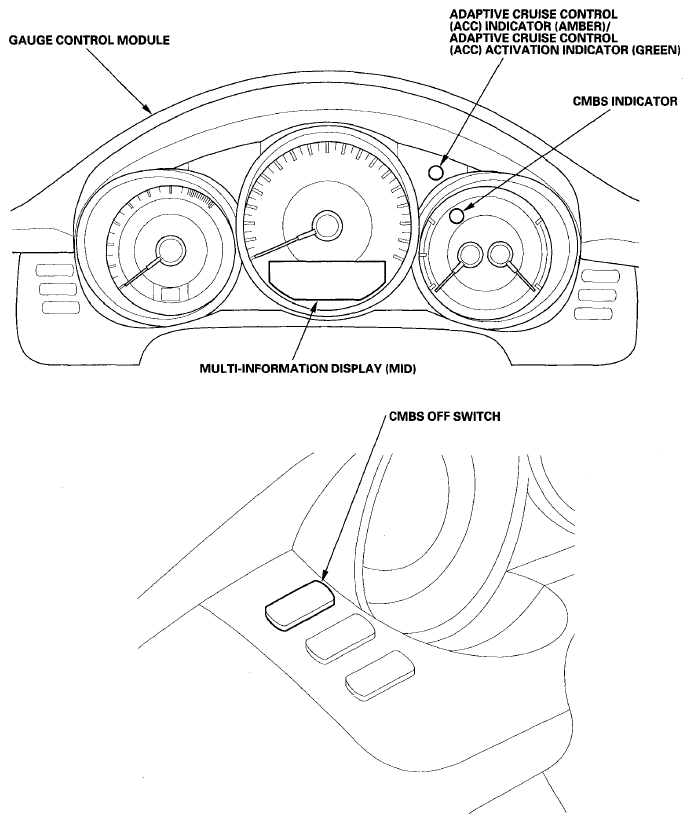

Fig 2: Identifying Collision Mitigation Brake System (CMBS) Replacement Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
