Component Location Index

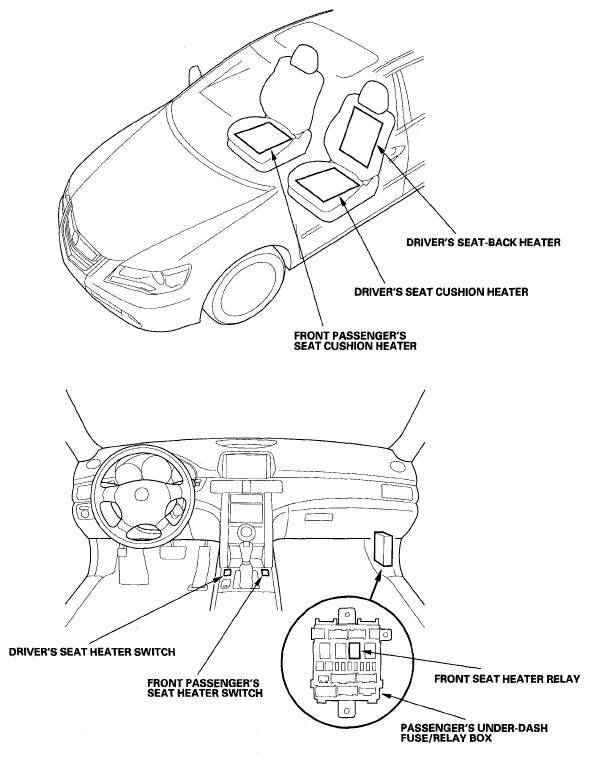

Fig 1: Identifying Seat Heaters Component Location (1 Of 2)
G06162911Courtesy of AMERICAN HONDA MOTOR CO., INC.

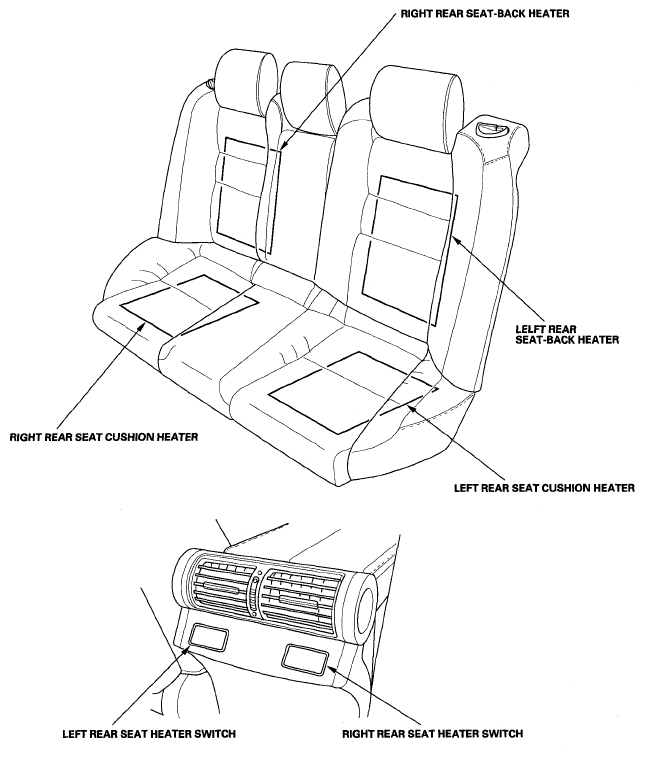

Fig 2: Identifying Seat Heaters Component Location (2 Of 2)
G06162912Courtesy of AMERICAN HONDA MOTOR CO., INC.
