Document Tray Removal/Installation

NOTE: Take care not to scratch the dashboard and related parts.
  1. Open the glove box.
  2. Remove the document tray (A).
    1. Open the document tray.
    2. Release the blind fastener (B).
    3. Pull the document tray back to release the hooks (C).

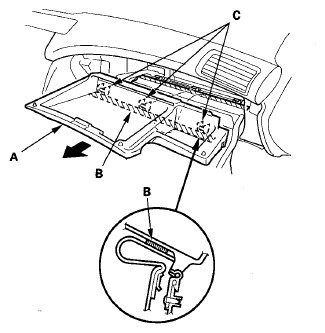

    Fig 1: Identifying Document Tray
    G06162403Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the tray in the reverse order of removal.
