USB Jack Replacement

  1. Remove the accessory trim (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Remove the pull out the USB jack (A) from the accessory trim, then disconnect the USB adapter cable 5P connector (B).

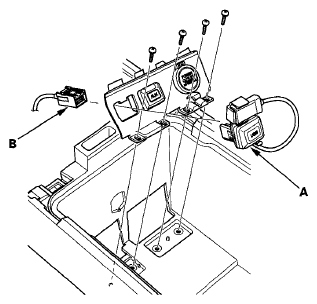

    Fig 1: Identifying USB Jack And USB Adapter Cable 5P Connector
    G06161253Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the USB jack in the reverse order of removal.
