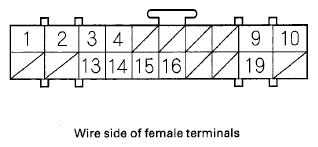

TPMS Control Unit Inputs and Outputs for Connector B (20P)
WIRE COLOR REFERENCE TABLE
| Terminal number | Wire color | Terminal sign (Terminal name) | Description | Measurement | ||
|---|---|---|---|---|---|---|
| Terminal | Conditions | Voltage | ||||
| 1 | LT GRN | RF LF SIG. (RF low frequency signal) | Detects the signal from the right-front initiator | 1-GND | For the first 5 seconds after turning the ignition switch ON (II) | Pulses 0-2 V |
| With ignition switch ON (II) for more than 5 seconds | Less than 0.1V | |||||
| 2 | GRY | RR LF SIG. (RR low frequency signal) | Detects the signal from the right-rear initiator | 2-GND | For the first 5 seconds after turning the ignition switch ON (II) | Pulses 0-2 V |
| With ignition switch ON (II) for more than 5 seconds | Less than 0.1V | |||||
| 3 | GRY | LF LF SIG. (LF low frequency signal) | Detects the signal from the left-front initiator | 3-GND | For the first 5 seconds after turning the ignition switch ON (II) | Pulses 0-2 V |
| With ignition switch ON (II) for more than 5 seconds | Less than 0.1V | |||||
| 4 | PNK | LR LF SIG. (LR low frequency signal) | Detects the signal from the left-rear initiator | 4-GND | For the first 5 seconds after turning the ignition switch ON (II) | Pulses 0-2 V |
| With ignition switch ON (II) for more than 5 seconds | Less than 0.1V | |||||
| 9 | LT BLU | K-LINE (Data link connector) | Communications with HDS | -- | -- | -- |
| 10 | RED | CANL (CAN communication signal low) | Sends the communication signal | -- | Ignition switch ON (II) | Pulses |
| 13 | LT BLU | LF LF GND (LF low frequency ground) | Ground for the left-front initiator | 13-GND | Ignition switch ON (II) | Less than 0.1V |
| 14 | PNK | RF LF GND (RF low frequency ground) | Ground for the right-front initiator | 14-GND | Ignition switch ON (II) | Less than 0.1V |
| 15 | GRN | LR LF GND (LR low frequency ground) | Ground for the left-rear initiator | 15-GND | Ignition switch ON (II) | Less than 0.1V |
| 16 | LT GRN | RR LF GND (RR low frequency ground) | Ground for the right-rear initiator | 16-GND | Ignition switch ON (II) | Less than 0.1V |
| 19 | WHT | CAN H (CAN communication signal high) | Sends the communication signal | -- | Ignition switch ON (II) | Pulses |
