Power Window Master Switch Connector End View

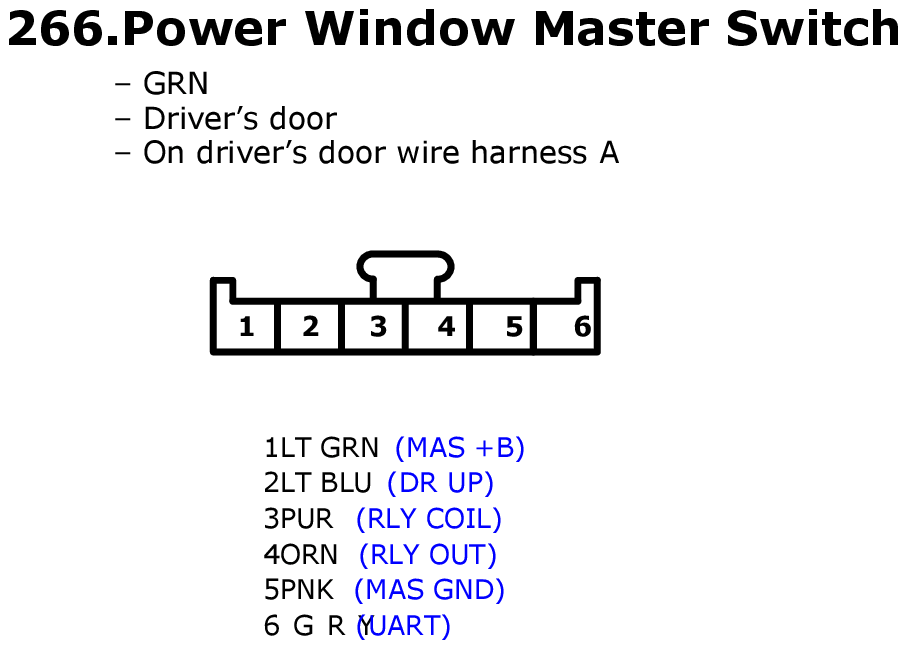

Fig 1: Power Window Master Switch Connector End View

GHHW10122

Courtesy of AMERICAN HONDA MOTOR CO., INC.
