Keyless Access RF Unit 1 Connector End View

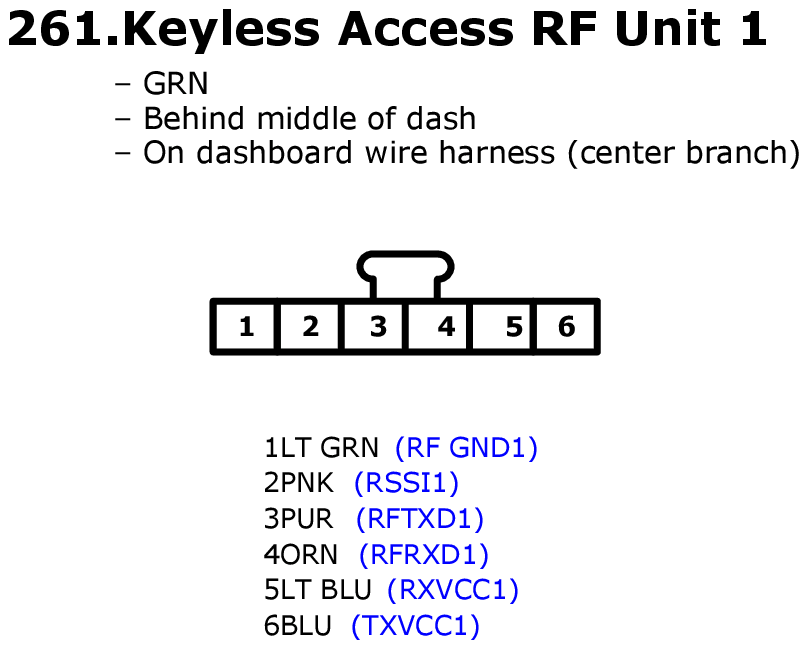

Fig 1: Keyless Access RF Unit 1 Connector End View

GHHW10117

Courtesy of AMERICAN HONDA MOTOR CO., INC.
