Front Passenger's Seat Ventilation Control Unit Connector End View

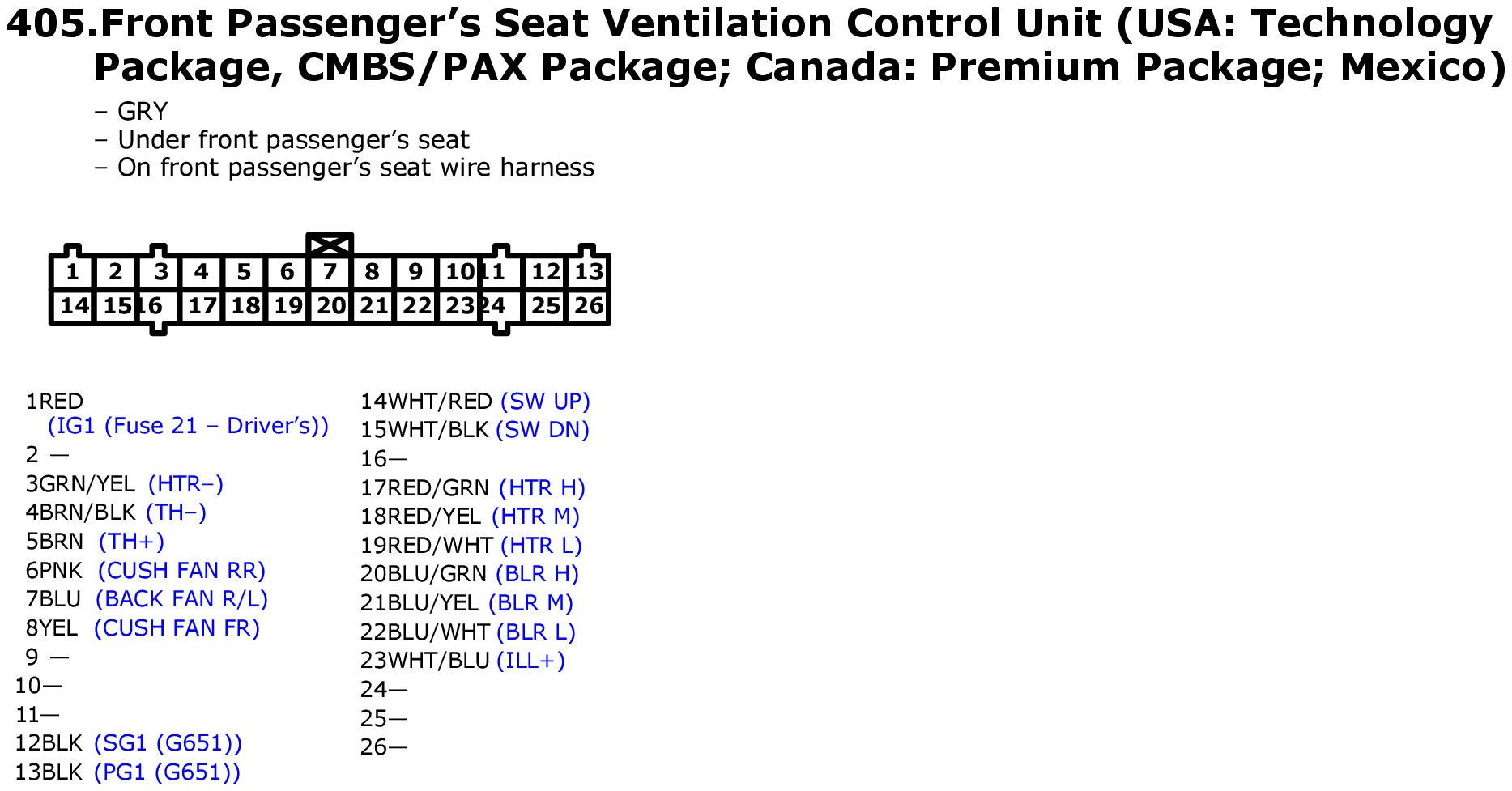

Fig 1: Front Passenger's Seat Ventilation Control Unit Connector End View

GHHW10261

Courtesy of AMERICAN HONDA MOTOR CO., INC.
