Audio-HVAC Subdisplay Unit-Clock Connector End View

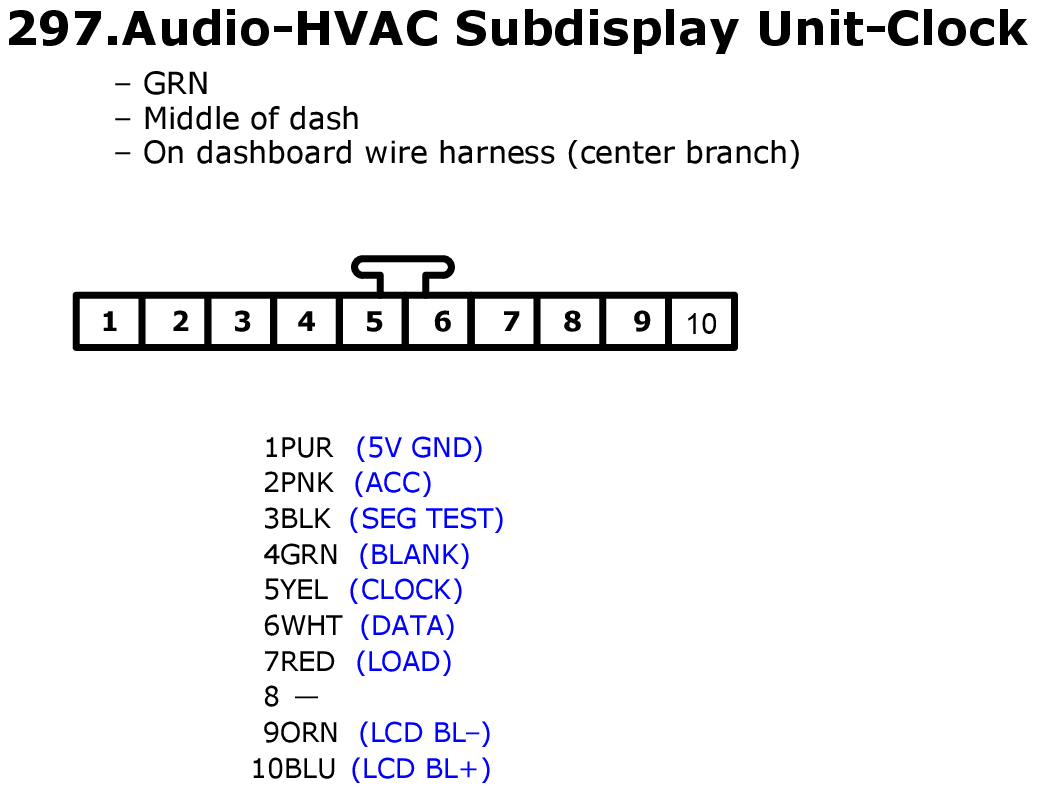

Fig 1: Audio-HVAC Subdisplay Unit-Clock Connector End View

GHHW10153

Courtesy of AMERICAN HONDA MOTOR CO., INC.
