Horizontal Aiming

Park the vehicle on level ground with at least this much open space around it: 32.8 ft (10 m) in front, 13.1 ft (4 m) in width, and 4.9 ft (1.5 m) in height.

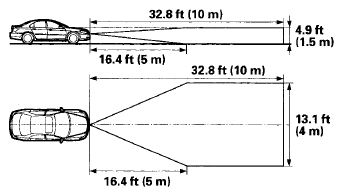

Fig 1: Identifying Vehicle Aiming Height And Width
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make sure there are no reflecting objects or anything in this range.
Check the tire pressures, and adjust the pressures to the specified value if need.
Put a person or an object equivalent to the driver's weight in the driver's seat.
Setting the Distance between the Target and the Vehicle

Horizontal Aiming

NOTE: When marking on the floor, use suitable tape to mark the exact locations.
Adjust the tip of the height rod (A) on the target to the center of the front radar cover (B).

Fig 2: Identifying Height Rod And Front Radar Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place the centering stand under the rear tow hook, then mark the floor at the centerline of the tool.

Fig 3: Placing Centering Stand Under Rear Tow Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.
At the front of the vehicle, slide the gas strut holder and the cord through the slot in the centering stand, then slide the strut to the rear of the vehicle.

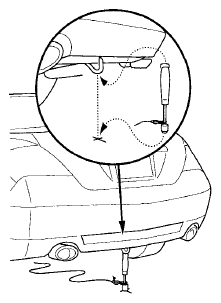

Fig 4: Sliding Gas Strut Holder And Cord
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Position the gas strut holder between the rear tow hook and the mark on the floor.

Fig 5: Identifying Gas Strut Holder Between Rear Tow Hook And Mark On Floor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Place the centering stand under the hole in the front lift pad.

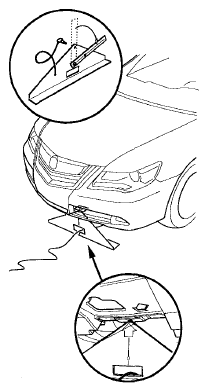

Fig 6: Identifying Centering Stand Under Hole In Front Lift Pad
Courtesy of AMERICAN HONDA MOTOR CO., INC.
With the target and the height rod aligned with the cord, move the target out in front of the vehicle until the cord is fully extended (16.5 ft, 5 m). Position the cord at the centerline of the centering stand.

Fig 7: Positioning Cord Centerline Of Centering Stand
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Contact the HDS to the data link connector (A).

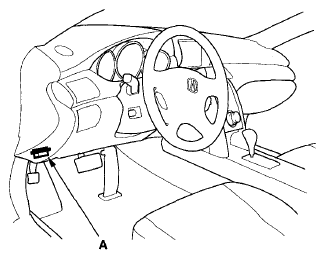

Fig 8: Identifying Connect HDS To Data Link Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the ignition switch to ON (II).
Check for DTCs with the HDS.
NOTE: If DTC 61 or DTC 62 is indicated, troubleshoot the indicated DTC first.
Start the engine.
Turn the ACC switch (A) ON.

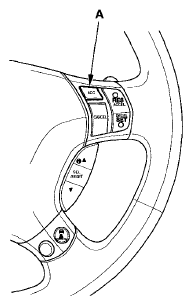

Fig 9: Identifying ACC Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Select ADAPTIVE CRUISE CONTROL (ACC) from DRIVING SUPPORT menu. Select RADAR AIMING from ADJUSTMENT menu, the MID will indicate the number "4" on its display for 2 seconds then display "NO TARGET".

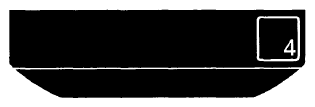

Fig 10: Screen Display - Indicate Number 4
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make sure the MID indicates "NO TARGET" on its display.
NOTE: When the radar is aimed correctly the MID indicates "NO TARGET". If this is not indicated there is an unwanted radar reflection in front of the vehicle in the range of the radar.

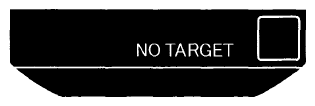

Fig 11: Screen Display - No Target
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Confirm the result of the horizontal auto aiming following the onscreen instructions of the HDS.
NOTE: The result of all auto aiming can be confirmed by the HDS, by the figure and words displayed on the MID, or by the brake lights illuminating. When the figure is not in the range 100±2 or a tone is sounded by the vehicle when the aiming point is out of specification, or when the brake lights do not come on, the auto aiming is not completed correctly. If DTC 120,121,122,123, or 124 is indicated, the aiming target is not set correctly. Reset the aiming target.

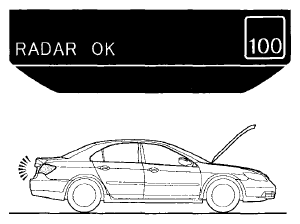

Fig 12: Screen Display - Radar Ok
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After adjustment, confirm the MID display and the brake lights illuminating, and finalize the horizontal aiming (End the aiming process on the HDS).
After aiming, clear the DTCs with the HDS.
