Grab Handle Removal/Installation

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE: Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

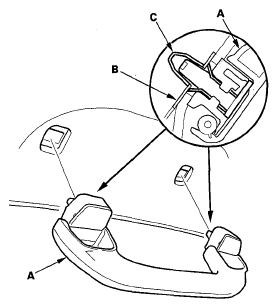

Lower the grab handle (A), then pull out the caps (B) by prying up at the notches (C) with a small flat-tip screwdriver.

Fig 1: Identifying Grab Handle, Caps And Notches
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While pinching the clips (A), release the hooks (B), then remove the grab handle (C).

Fig 2: Identifying Clips, Hooks And Grab Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Using a pair of pliers, remove all of the clips (A) by pinching its hooks.

Fig 3: Identifying Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the side curtain airbag has deployed, replace the grab handle with a new one (see COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT ).
If the side curtain airbag has not deployed, to prevent the side curtain airbags from deploying improperly and possibly causing injury, inspect removed pieces and replace them if they have any of these types of damage:
- Any cracks or damage in the grab handle (A)
- Any cracks or stress-whitening in the caps (B)

  Fig 4: Identifying Grab Handle And Caps
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the clips (A) to the grab handle (B), then install the caps (C) fully into the clips.

Fig 5: Identifying Clips, Grab Handle And Caps
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Position the grab handle (A) on the bracket (B), and push on the grab handle until the clips (C) snap into place securely.

Fig 6: Identifying Grab Handle, Bracket And Clips
Courtesy of AMERICAN HONDA MOTOR CO., INC.
