Yaw Rate-Lateral Acceleration Sensor Replacement

  1. Make sure the ignition switch is OFF.
  2. Remove the center console (see CENTER CONSOLE DISASSEMBLY/REASSEMBLY ).
  3. Disconnect the yaw rate-lateral acceleration sensor 4P connector (A).

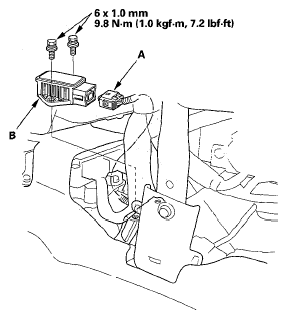

    Fig 1: Yaw Rate-Lateral Acceleration Sensor With Torque Specifications
    G05447397Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the sensor mounting bolts, and remove the yaw rate-lateral acceleration sensor (B).
  5. Install in the reverse order of removal.
