VSA Modulator-Control Unit Removal and Installation: Removal

  1. Make sure the ignition switch is in LOCK (0).
  2. Disconnect the VSA modulator-control unit 46P connector (A) by pulling up the lock (B); the connector disconnects itself.

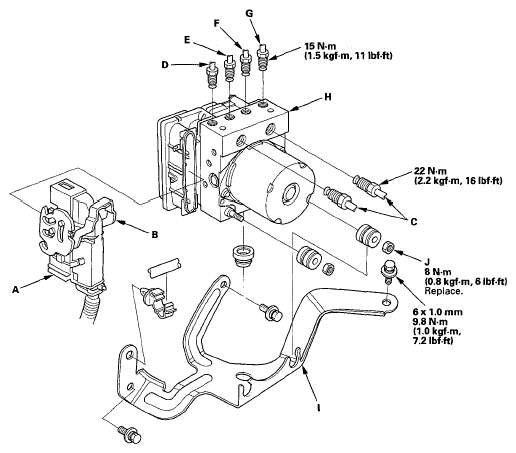

    Fig 1: VSA Modulator-Control Unit Components With Torque Specifications
    G05447401Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the six brake lines from the VSA modulator-control unit.
    NOTE: Brake lines are connected to the master cylinder (C), and to the right-front (D), the left-rear (E), the right-rear (F), and the left-front (G) brake systems.
  4. Remove the VSA modulator-control unit (H) with the bracket (I) from the body.
  5. Remove the locknuts (J), then remove the VSA modulator-control unit from the bracket.
