VSA Modulator-control Unit Inputs and Outputs for 46P Connector

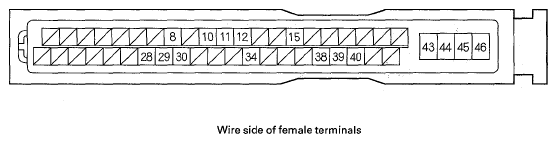

CONNECTOR TERMINALS REFERENCE
| Terminal number | Wire color | Terminal sign | Description | Measurement (Disconnect the VSA modulator-control unit 46P connector) | ||
|---|---|---|---|---|---|---|
| Terminal | Conditions | Voltage | ||||
| 8 | WHT | RR-GND | Detects right-rear wheel sensor signal | - | - | - |
| 10 | RED | RL-GND | Detects left-rear wheel sensor signal | - | - | - |
| 11 | YEL | RL+B | Detects left-rear wheel sensor signal | - | - | - |
| 12 | ORN | FL+B | Detects left-front wheel sensor signal | - | - | - |
| 15 | LT BLU | K-LINE | Communicates with HDS | - | - | - |
CONNECTOR TERMINALS REFERENCE
| Terminal number | Wire color | Terminal sign | Description | Measurement (Disconnect the VSA modulator-control unit 46P connector) | ||
|---|---|---|---|---|---|---|
| Terminal | Conditions | Voltage | ||||
| 28 | PNK | FR-GND | Detects right-front wheel sensor signal | - | - | - |
| 29 | GRN | FR+B | Detects right-front wheel sensor signal | - | - | - |
| 30 | LT GRN | RR+B | Detects right-rear wheel sensor signal | - | - | - |
| 34 | GRY | FL-GND | Detects left-front wheel sensor signal | - | - | - |
| 38 | RED | CAN-L | F-CAN communication circuit | - | - | - |
| 39 | WHT | CAN-H | F-CAN communication circuit | - | - | - |
| 40 | GRN | IG1 | Power source for activating the system | 40-GND | Ignition switch ON (II) | Battery voltage |
| 43 | BLK | GND2 | Ground for the VSA modulator-control unit | 43-GND | At all times | Continuity to ground |
| 44 | WHT | +BSOL | Power source for the valve relay | 44-GND | At all times | Battery voltage |
| 45 | RED | +BMOT | Power source for the motor relay | 45-GND | At all times | Battery voltage |
| 46 | BLK | GND1 | Ground for the pump motor | 46-GND | At all times | Continuity to ground |
