Brake Pedal Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The illustration shows A/T
  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION )
  2. Disconnect the brake pedal position switch connector (A), and harness clip (B)

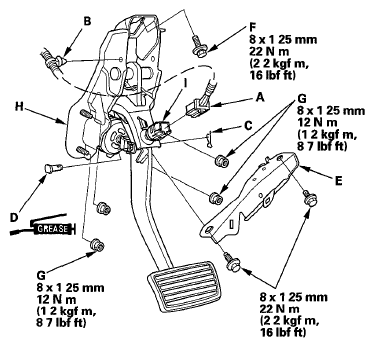

    Fig 1: Brake Pedal Replacement Components With Torque Specifications
    G05987949Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. A/T: Remove the wire harness clip (B)
  4. Remove the lock pin (C) and the clevis pin (D)
  5. Remove the brake pedal support member (E)
  6. Remove the brake pedal bracket mounting bolt (F) and the nuts (G)
  7. Remove the brake pedal with bracket (H)
  8. Remove the brake pedal position switch (I) by turning it 45° counterclockwise
  9. Install the brake pedal in the reverse order of removal
  10. Adjust the brake pedal and the brake pedal position switch (see BRAKE PEDAL AND BRAKE PEDAL POSITION SWITCH ADJUSTMENT )
