AcuraLink Control Unit (XM Receiver) Connector for Inputs and Outputs

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

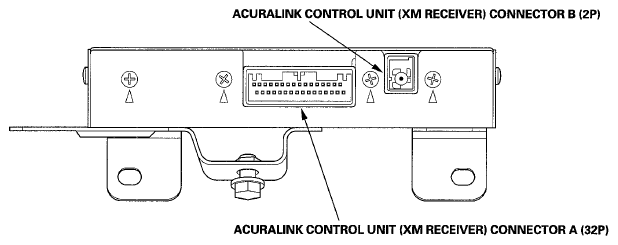

Fig 1: Identifying Acuralink Control Unit Connector B (2P) Location
G05989871Courtesy of AMERICAN HONDA MOTOR CO., INC.

AcuraLink Control Unit (XM Receiver) Connector A (23P)

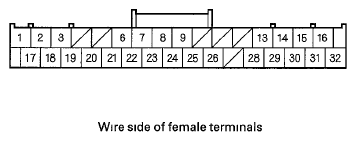

Fig 2: Identifying Acuralink Control Unit Connector A (32P) Terminal
G05989872Courtesy of AMERICAN HONDA MOTOR CO., INC.
CONNECTOR TERMINAL REFERENCE CHART

Cavity Wire Color Terminal Name Connect to
A1 WHT +B No 15 (10 A) fuse in the under-hood fuse/relay box
A2 BRN IG1 No 12 (7 5 A) fuse in the drivers' under-dash fuse/relay box
A3 PUR ACC No 18 (7 5 A) fuse in the drivers' under-dash fuse/relay box
A6 BLK F-CAN LO F-CAN communication bus line
A7 WHT F-CAN HI F-CAN communication bus line
A8 BLU B-CAN LO B-CAN communication bus line
A9 PNK B-CAN HI B-CAN communication bus line
A13 GRN AUDIO L- Audio-navigation unit, HandsFreeLink control unit
A14 WHT AUDIO R- Audio-navigation unit, HandsFreeLink control unit
A15 BLK AUDIO L+ Audio-navigation unit, HandsFreeLink control unit
A16 RED AUDIOR+ Audio-navigation unit, HandsFreeLink control unit
A17 WHT NAVI COMM1 Audio-navigation unit
A18 RED NAVI COMM2 Audio-navigation unit
A19 GRN NAVI COMM3 Audio-navigation unit
A20 BLK NAVI COMM4 Audio-navigation unit
A21 GRY(1) NAVI COMM SH Shield for terminals No 17, No 18, No 19, and No 20
A22 RED HIP/HFL COMM3 HandsFreeLink control unit
A23 WHT HIP/HFL COMM4 HandsFreeLink control unit
A24 BLK HIP/HFL COMM1 HandsFreeLink control unit
A25 GRN HIP/HFL COMM2 HandsFreeLink control unit
A26 GRY(1) HIP/HFL COMM SH Shield for terminals No 22, No 23, No 24, and No 25
A28 BLK GND Body ground to G501
A29 GRY(1) GA-NET BUS SH Shield for terminals No 30 and No 31
A30 PNK GA-NET BUS+ Audio-navigation unit, HandsFreeLink control unit, navigation display unit
A31 BLU GA-NET BUS- Audio-navigation unit, HandsFreeLink control unit, navigation display unit
A32 GRY(1) AUDIO SH Shield for terminals No 13, No 14, No 15, and No 16
(1) The shielded wires have a heat-shrunk tube insulating the outside of the wire The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic

AcuraLink Control Unit (XM Receiver) Connector B (2P)

Fig 3: Identifying Acuralink Control Unit Connector B (2P)
G05989873Courtesy of AMERICAN HONDA MOTOR CO., INC.
CONNECTOR TERMINAL REFERENCE CHART

Cavity Wire Terminal Name Connect to
B1 -- SAT/TER XM antenna
B2 -- GND SH Shield for terminal No 1
