Control Unit Input Test
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the HandsFreeLink control unit (see HFL SWITCH TEST )

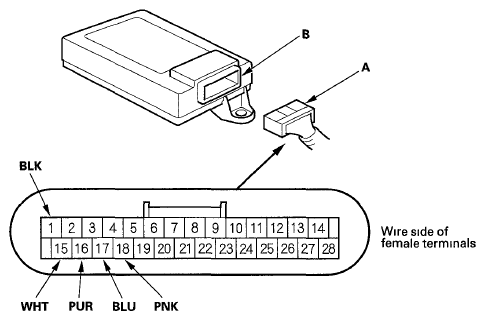

- Inspect the connector (A) and socket (B) terminals for a good pinfit to be sure they are all making good contact
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system
- If the terminals look OK, go to step 3
- Reconnect the connector, and make these input tests at the connector
- If any test indicates a problem, find and correct the cause, then recheck the system
- If all the input tests prove OK, go to step 4TEST CONDITION REFERENCE CHART
Cavity Wire Test condition Test Desired result Possible cause if desired result is not obtained 1 BLK Under all conditions Measure the voltage to ground There should be less than 0 2V - Poor ground (G501)
- An open or high resistance in the wire
15 WHT Under all conditions Measure the voltage to ground There should be battery voltage - Blown No 15(10A) fuse in the under-hood fuse/relay box
- An open in the wire
16 PUR Ignition switch in ACCESSORY (I) or ON (II), or the engine start/stop button to ACC mode or ON mode Measure the voltage to ground There should be battery voltage - Blown No 18 (7 5 A) fuse in the driver's under-dash fuse/relay box
- An open in the wire
- Disconnect the 28P connector again, and make this input test at the connector
- If the test indicates a problem, find and correct the cause and check for B-CAN related DTCs, then recheck the system
- If the input test proves OK, the HandsFreeLink control unit is faulty, replace itTEST CONDITION REFERENCE CHART
