Washer Reservoir Replacement

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right front inner fender (see FRONT INNER FENDER REPLACEMENT )
Disconnect the 2P connector(s) (A) from the windshield washer motor (B), washer fluid level switch (Canada models), and the headlight washer motor (Canada models with SH-AWD)
Washer Reservoir Capacity

2.5 L (2.64 US qt) USA models

5 5 L (5 81 US qt) Canada models

USA models

Fig 1: Identifying Windshield Washer Motor And 2P Connector (USA Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Canada models

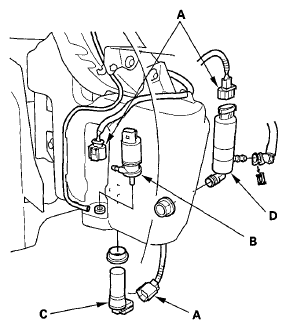

Fig 2: Identifying Windshield Washer Motor And 2P Connector (Canada Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the washer tube(s), then if necessary, remove the washer motor, the washer fluid level switch (C) (Canada models), and the headlight washer motor (D) (Canada models with SH-AWD)
NOTE: Fluid may flow out of the opening
Remove the clip (A) and three bolts from the washer reservoir (B)

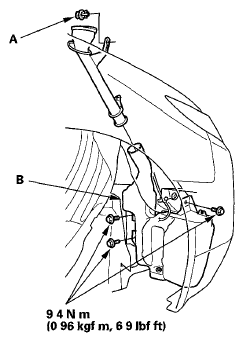

Fig 3: Washer Reservoir With Clip And Bolts With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the washer reservoir in the reverse order of removal Check the washer motor operation
