Section 13 (Rear Differential)
>>
System Description
>>
Electric Control System
>>
SH-AWD Control Unit Electrical Connections
SH-AWD Control Unit Electrical Connections
WARNING:
This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

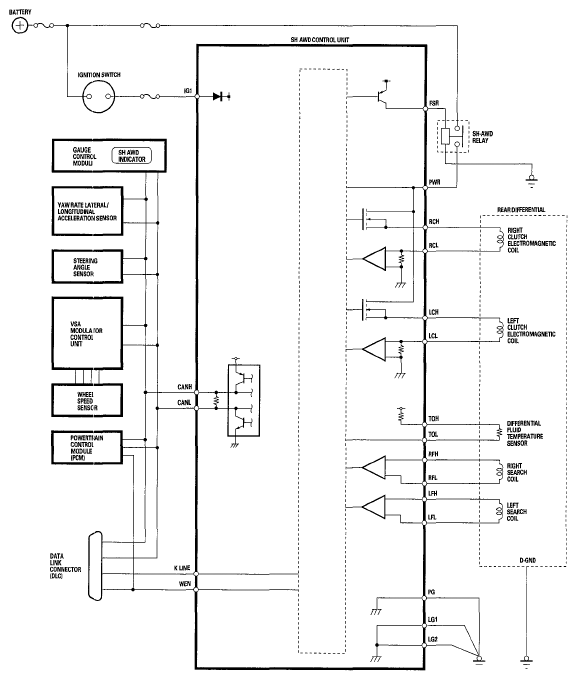

Fig 1: SH-AWD Control Unit Electrical Connections - Wiring Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
