Exploded View

WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.

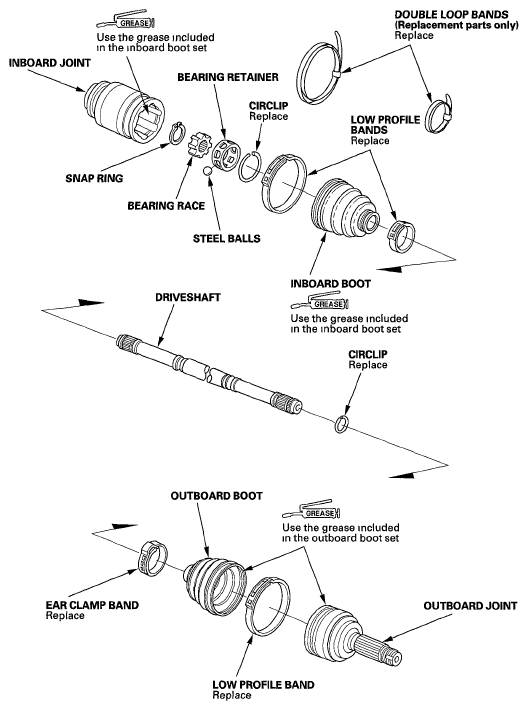

Fig 1: Exploded View Of Rear Driveshaft Reassembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

Boot band tool, KD-3191 or equivalent, commercially available
Seal clamp tool, Kent-Moore J-35910 or equivalent, commercially available
Boot band pliers, commercially available

NOTE: Refer to the EXPLODED VIEW , as needed, during this procedure
