Accelerator Pedal Position (APP) Sensor

As the accelerator pedal position changes, the sensor varies the signal voltage to the ECM/PCM.

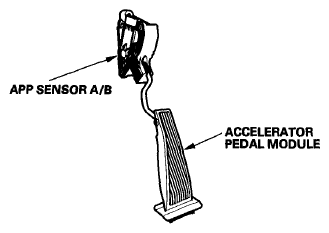

Fig 1: Identifying Accelerator Pedal Position (APP) Sensor

G06265767
