Starter Removal and Installation: Installation

Install the starter cable (A) and BLK/WHT (B) wire. Make sure the starter cable crimped side of the ring terminal faces away from the starter when you connect it.

Fig 1: Starter Cable And BLK/WHT Wire With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the harness clamp (C).
Install the starter, and tighten the bolts.

Fig 2: Starter And Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the intake manifold bracket.
K20Z2 engine

Fig 3: Intake Manifold Bracket Bolt And Nut (K20Z2 Engine) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

K20Z3 engine

Fig 4: Intake Manifold Bracket Bolt And Nut (K20Z3 Engine) With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the splash shield.

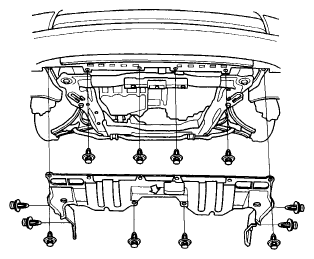

Fig 5: Identifying Splash Shield And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the positive cable to the battery first, then connect the negative cable.
Start the engine to make sure the starter works properly.
Enter the anti-theft code for the audio unit or navigation system, then enter the audio preset.
Set the clock.
