HFL-Navigation Microphone Removal/Installation

Remove the front individual map light lens (A).

Fig 1: Identifying Front Individual Map Light Lens And Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolts (B), then disconnect the connectors, and remove the map lights housing (C).
Carefully pry off the moonroof switch (D) from the map light housing while pressing in on the retaining tabs (E).

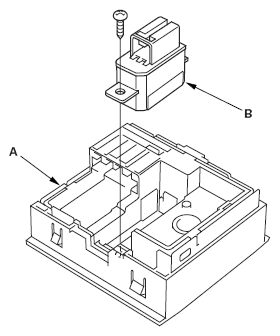

From the moonroof switch (A), remove the screw and microphone (B).

Fig 2: Identifying Moonroof Switch, Microphone And Screw
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the microphone in the reverse order of removal.
